Click the Open Arge Browser button to open the sanitary ware browser. Select one of the objects and close the browser. Place selected object into the project by clicking on one of the walls.

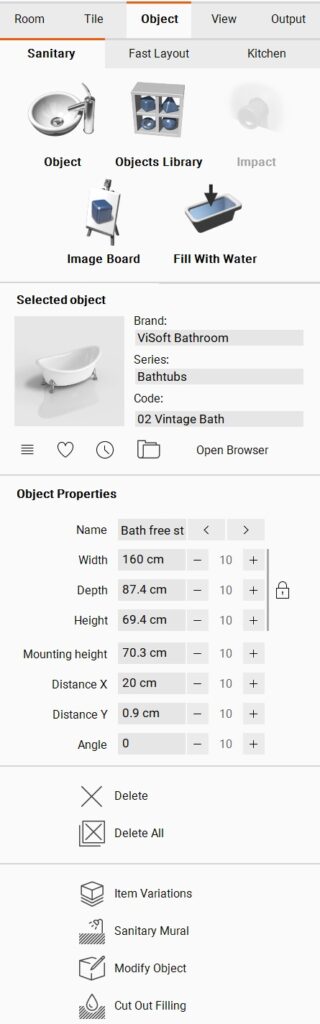

Object: place currently selected object (left click) or open sanitary ware browser (right click).
Library: open custom murals library (right click) or place currently select custom mural (left click).
Impact: open impacts library (right click) or place currently selected impact (left click).
Selected object: preview picture of currently selected object. Left click to open sanitary ware browser. Right click to show list of up to 9 recently used objects.
Properties…: opens currently selected object’s properties.
Object properties:
Name (not alterable): use arrows < and > to select next / previous sanitary ware object from your project.
Width**: set width of the selected object.
Thickness**: set thickness of the selected object.
Height**: set height of the selected object.
Mounting height: set mounting height of the selected object.
Distance X: set sanitary ware object position in regard to the length of related wall.
Distance Y: set distance between sanitary ware object and related wall.
Angle: set angle of the selected sanitary ware object.
** click on the lock button to the right of these fields to keep object’s proportions.
Reset Size – reset size of the selected object to its original size.
Delete All: delete all sanitary ware objects from the project.
Delete: delete currently selected object.
Cut Out Filling: removes filling that occurs when sanitary ware objects (like bath tubs) are placed into murals. Also usable for under-built washbasins.
Modify object: use this option to flip geometry or faces of the object, rotate it and adjust map textures.
Sanitary Mural: create mural around the selected bath or shower tub.
Fill With Water: place water texture into tubs and washbasins.
Place Magic Board: place a panel with custom picture which faces the camera from all viewpoints.
Item variatons: open semi-transaprent object variations panel for quicker object properties selection.
Import: import 3D object into your project.
