Fields Inside, Outside and Color show joints properties of currently selected region. Inside joint is a size of a joint between tiles in that particular region. Outside joint is a joint on the outer limit of currently selected region. Click buttons + or – to adjust the joint size. Click button Color to select another color.
Click button Joint Settings to open the following menu:
In this menu you can select Wall or Floor Joint color which is applied to all regions on walls / floor after clicking Apply to Room button. Click on one of the color buttons to open the Tile grouts menu (shown below).
Option Use joint values from database means that joint size is defined in the tiles browser menu for each tile.
On the right are general settings for joints sizes on floor edges, wall edges, mural edges and door/window edges.

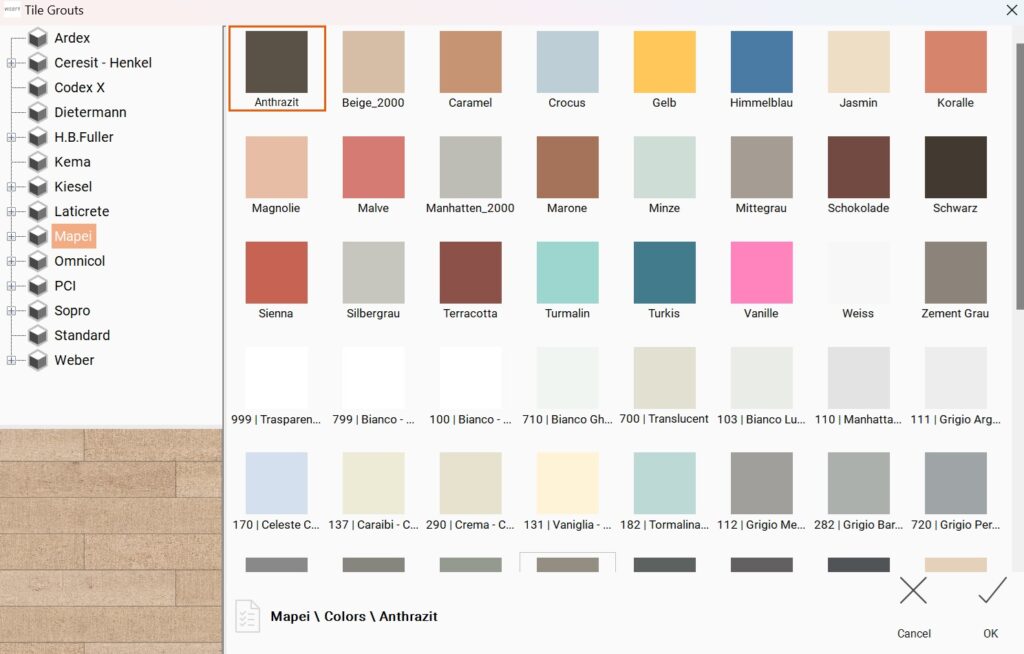

| Tile grouts menu enables you to choose one of the available grout colors. Pick one of the manufacturers listed on the left hand side of the menu then click on desired color on the right hand side. Close menu with OK button. |
