Way of Laying Tiles

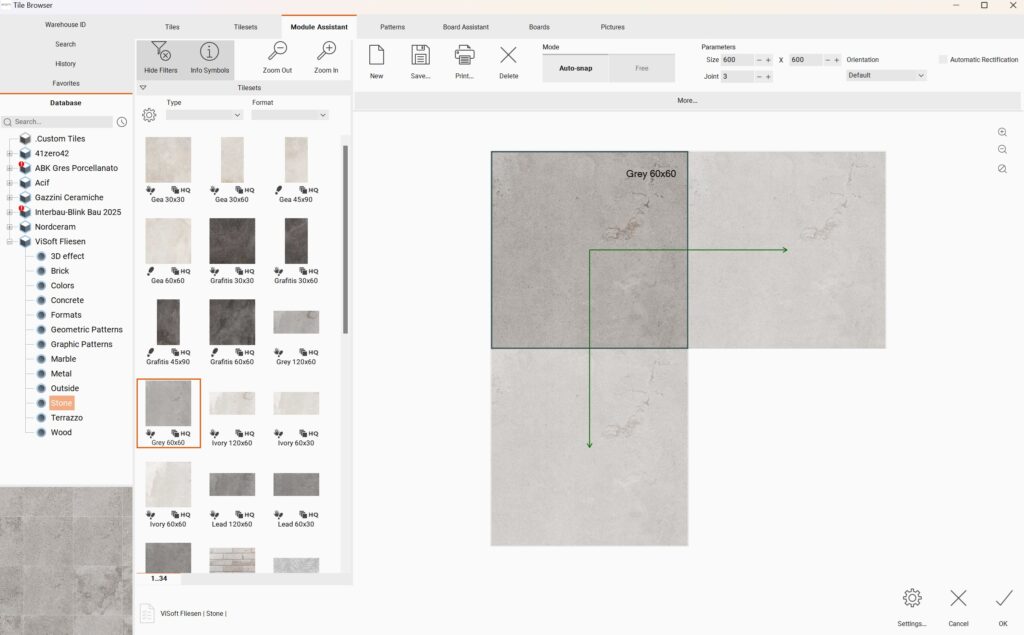

This assistant enables you to create your own modules from tiles of different sizes (also called patterns, laying solutions or laying compositions). To create a new module select one of the tiles on the left hand side. If you wish to work with tilesets enable them by clicking on button Tilesets. Drag& drop the selected tile to the right hand side. To rotate the tile by 90 degrees click right mouse button once before dropping it. Select another tile and drag it to the right hand side. On the edge of both tiles you will see small circles that represent possible drop points. To see more of them press Shift. Drop the tile to the desired position. After you dropped it you can see two red arrows in the direction of the pattern reproduction. Please mind the module preview in the left lower corner of the screen. If the picture of the preview does not appear the generation of your module is not possible. Data from some manufacturers does not contain the information whether the tile size meant to be used in modules is rectified/calibrated or not. Because of that you will have to set joint width to 0 in some cases. If you want to use the module you created in other projects you can save it. Click Save then enter the name of the module. Modules are saved in the tab Patterns. You can print the pattern by clicking the Print button.
