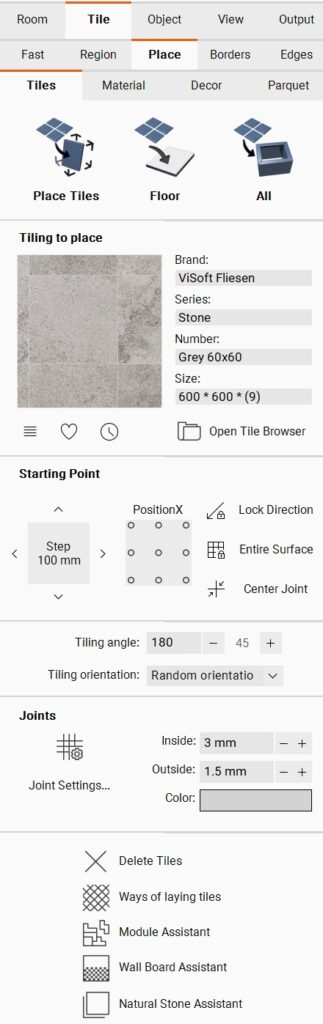

Tiling: place tiles as shown in the tiling preview into the region you click on after activating this button
Selected tile: open tiles browser (left click) or tiles stack (right click)
Properties: show selected tile’s properties
Open Tile Browser: open tiles browser
Way of Laying Tiles:
Picture shows the tiling preview. Define the way in which you want to place tiles by activating one of the buttons:
Simple: Pattern Assistant
Module: Module Assistant
Wall Board: Wall Board Assistant
Floor Board: Floor Board Assistant
Natural Stone: Natural Stone Assistant
Left click one of these buttons to select the tiling defined by corresponding assistant. Right click one of these buttons to open the corresponding assistant. Alternatively click on the button with three dots on the right side.
Apply tiling on:
Selected Surface: place tiles as shown in the tiling preview into currently selected region
All Walls (Mural Faces, Aperture sides…): place tiles as shown in the tiling preview on several regions at once
All Surfaces: place tiles as shown in the tiling preview to all regions
Delete Tiles: delete tiles from currently selected region
With this menu you can place tiles into single region or several regions at once. Creating of regions and tile placing can be done manually or automatically with use of assistants.
Tile placing can be done in several different ways. Click the button Tiling and then on the selected region. The tiles will appear there in the accordance with the selected tiling in Pattern assistant. Holding the CTRL button while placing tiles will enable you to place them in multiple regions one after the other. You can also place tiles with buttons Selected, All Walls (or Mural Faces, Aperture sides…) and All located under the tiling preview.
Click on the preview of the selected tile to open the tiles browser. Right click on the preview to open the Tile stack. It shows tiles already used in the project and tiles from the currently selected wall and floor tilesets. You can select any tile from the stack. To the right of the preview you can see the Brand, Series, Number and Size of the currently selected tile.
Moving the cursor of the mouse over the tiling preview will show three additional options: Pattern assistant, Module assistant, Natural stone assistant.
Placing of tiles can be done in 3D view too. Click on quickview button 3D and then on button Tiling. Move mouse on the desired region. Place tiles by clicking the mouse button.
